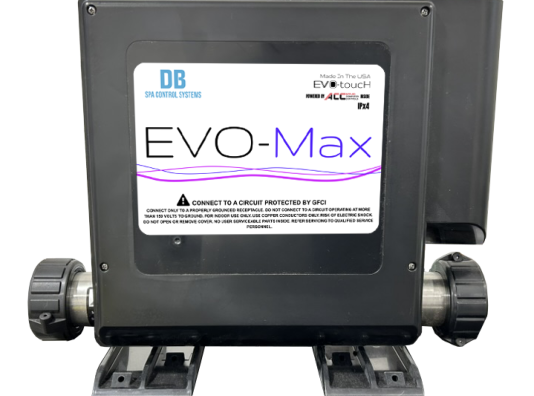

Evo-Max

The EVO-Max is built for spas that demand more. It supports up to four main components—pumps or a blower—along with a dedicated circulation pump, making it ideal for larger or feature-rich hot tubs. Pump 2 can remain dual-speed if needed**, offering added flexibility. Like the EVO-Plus, it supports heaters up to 5.5kW using our indirect contactor design, which reduces stress on the circuit board and extends system life. The EVO-Max is our most advanced model—engineered to the MAX to meet the higher demands of complex hot tub configurations.
Model
Voltage
Max Heater kW
Pump One
Pump Two*
Pump Three*
Pump Four**
Circulation Pump
O-zone
Light
EVO-Max Amps 41A /48A
115v/230v or Straight 230v
5.5kW (or smaller)
1 or 2 Speed 115v/230v Max Amps: 16A
1 or 2 Speed 115v/230v Max Amps: 16A
1 Speed Only 115v/230v Max Amps: 16A
1 Speed Only 115v/230v Max Amps: 16A
115v/230v Max Amps: 5A (Optional)
115v/230v
12v 2A max
Bigger Heater Can use heaters up to 5.5kw. Allowing faster heating operation. Warranty Best-in-class 36-month warranty size H14.5” x W15.3” x D3” Fits in many hot tubs Easy to use Utilizes EVO-toucH™ easy-to-use controls www.evo-touch.com Key Features and Benefits

Compatible Topside Controls

The following topside controls are compatible with the EVO-Max control system, allowing you to choose the ideal fit and functionality for your spa setup.
* An air blower can be installed in place of a pump. ** A fourth pump can be installed; however, pump two will operate in single-speed mode only.

Specs

DB Spa Control Systems
ADDRESS 8216 Lankershim Blvd Unit 23 North Hollywood, CA 91605
©2025 DB Spa Repair & Service
CONTACT e: contact@dbsparepair.com

Evo-Max

The EVO-Max is built for spas that demand more. It supports up to four main components—pumps or a blower—along with a dedicated circulation pump, making it ideal for larger or feature-rich hot tubs. Pump 2 can remain dual-speed if needed**, offering added flexibility. Like the EVO-Plus, it supports heaters up to 5.5kW using our indirect contactor design, which reduces stress on the circuit board and extends system life. The EVO-Max is our most advanced model—engineered to the MAX to meet the higher demands of complex hot tub configurations.
Model
Voltage
EVO-One Amps 41A /48A
115v/230v or Straight 230v
Bigger Heater Can use heaters up to 5.5kw. Allowing faster heating operation. Warranty Best-in-class 36-month warranty size H14.5” x W15.3” x D3” Fits in many hot tubs Easy to use Utilizes EVO-toucH™ easy-to-use controls

Key Features and Benefits

Compatible Topside

Controls

The following topside controls are compatible with the EVO- Max control system, allowing you to choose the ideal fit and functionality for your spa setup.

ET-500 SERIES

The ET-500 is our largest topside, featuring a sleek LCD display for a modern, clean look. It’s fully compatible with all EVO-toucH control systems. Surface Size: 9”x 3.5”

Specs

Max Heater kW
Pump One
Pump Two*
5.5kW (or smaller)
1 or 2 Speed 115v/230v Max Amps: 16A
1 or 2 Speed 115v/230v Max Amps: 16A
Pump Three*
Pump Four**
Circ Pump
1 Speed Only 115v/230v Max Amps: 16A
1 Speed Only 115v/230v Max Amps: 16A
115v/230v Max Amps: 16A (Optional)
O-zone
Light
115v/230v
12v 2A max
* An air blower can be installed in place of a pump. ** A fourth pump can be installed; however, pump two will operate in single-speed mode only.
